Move your mouse round the image for details.

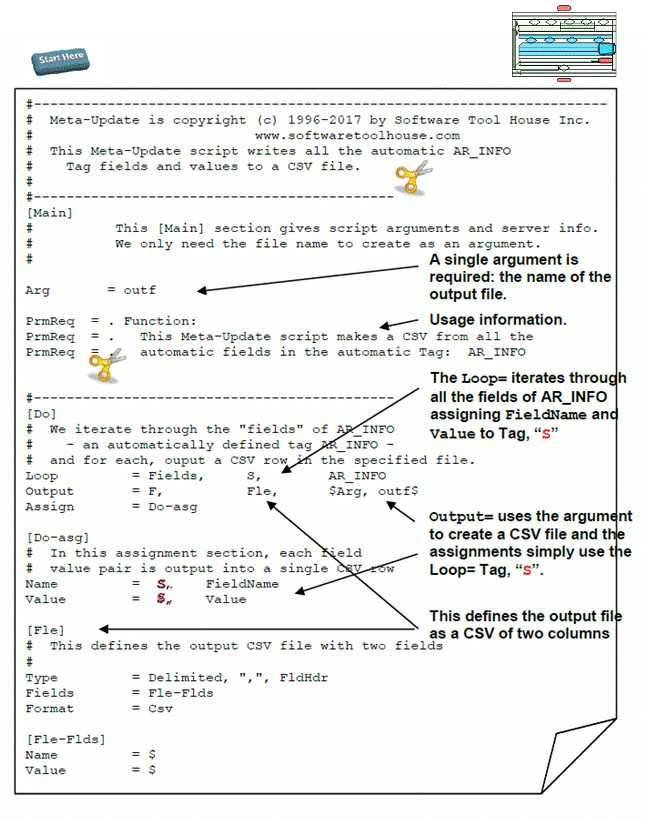

This Meta-Update script makes a file of all fields and values in the automatic tag: AR_INFO.

[Main] declares script arguments and usage.

[Do] will loop through all "fields" of the pre-defined Tag: AR_INFO — which contains all of the connected Remedy server's Server Information values.

Output= is used to add to a two-field CSV file named by the argument. Each iteration of the Loop= causes a new Output= record to be written.

Usage examples:

SvrInfo.ini

Do

-outf SvrInfo-dev.csv

Move your mouse round the image for details.

All Meta-Update Sample Scripts have plenty of comments. Feel; free to take a copy and edit. Use the debugger to single-step through the scripts.

[Main] is used to describe arguments, set up server connections, have initial and terminating assignments, and give usage information.

Here we have one required argument: -outf.

Usage examples:

SvrInfo.ini

Do

-outf SvrInfo-dev.csv

Move your mouse round the image for details.

[Do] iterates through the fields of tag AR_INFO.

AR_INFO is an automatic Meta-Update containing all server info fields and values.

[Do] uses an Output= to create a CSV file with two fields as defined by [Fle].

There will be as many rows created as there are field in the tag AR_INFO.

The Loop = Fields assigns different field value pairs to the target tag. In this case, we are only interested in the field name and value which our Assign= uses to create the CSV.

Move your mouse round the image for details.

[Do] iterates through the fields of tag AR_INFO iterates through the fields of tag comments. Feel; free to take a copy and edit. Use the debugger to single-step through the scripts.

[ Main ] is used to describe arguments, set up server connections, have initial and terminating assignments, and give usage information.

Here we have one required argument and two optional arguments: -go, -var and outf.

If you don't want a file and want the Path, no arguments are needed. But then, Meta-Update will not be able to display the Usage instructions. Hence, -go is required.

The AssignInit could be either here in [Main] or in [Do] below.
